Project Details:

Project Name: Central Cogeneracion

Commodities: turbine, generator and steam condenser and accessories



Scope of Work:

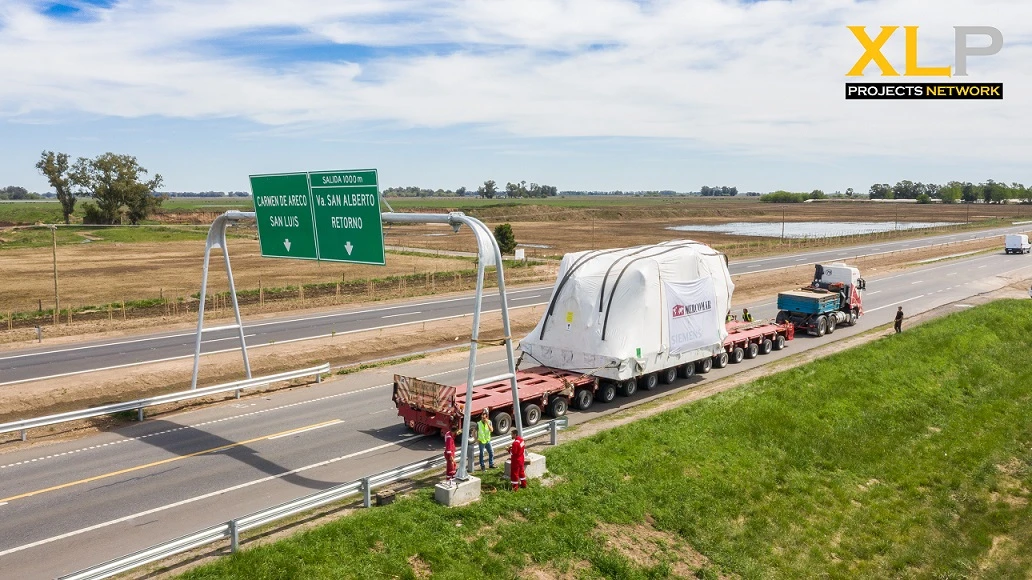

  • Inland transportation from Terminal Zarate, Zarate (120 km approx. from Buenos Aires) to Central Térmica San Lorenzo (San Lorenzo, Sta Fe)
  • Mounting turbine, generator and condenser at final site



Main Pieces (weight/ dimensions):

  • Turbine: 182 tons / (L) 8,938 x (W) 5,300 x (H) 4,776 mm
  • Generator: 134.1 tons/ (L) 8,900 x (W) 4,160 x (H) 3,570 mm

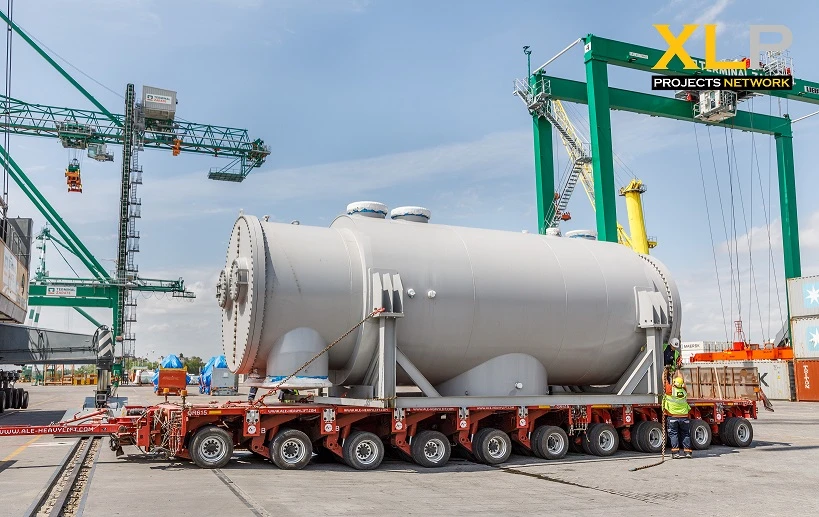

  • Condenser: 72 tons/ (L) 11,600 x (W) 4,720 x (H) 4,800 mm
  • Condenser accessories: 16 tons/ (L) 5,880 x (W) 4,800 x (H) 4,800 mm



Transportation Equipment Used:

  • Hydraulic conventional module (13 axes)/ 1 trip
  • Hydraulic conventional module (16 axes)/ 1 trip
  • Mechanic Low Bed (80 tons)/ 1 trip
  • Hydraulic module/ 1 trip
  • Mechanic Low Bed (40 tons)/ 2 trips
  • Semi-Trailer (IMO Cargo) (28 tons)/ 1 trip
  • Semi-Trailer Gral Cargo (28 tons)/ 13 trips



Mounting Equipment Used:

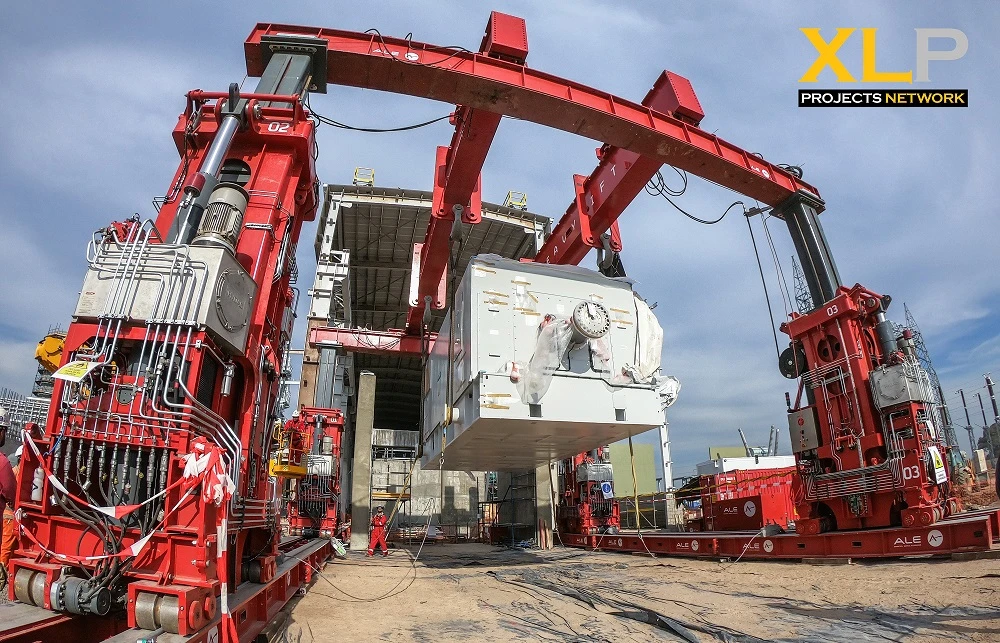

  • ALE Heavy Lift Hydraulic Gantry TLG1000/ 1 trip
  • Semi-Trailers Gral Cargo (28 tons)/ 12 trips
